Collimated Beam Measurement System

Quantity:

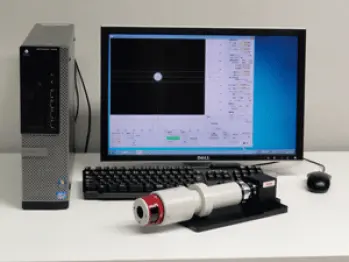

+Collimated beam pattern measurement and analysis system in combination with collimated beam measurement optics & Optical Beam Analysis Module AP013. Best for collimate lens alignment of various optical collimator devices and modules
+Evaluation of collimated beam quality
+Alignment, assembling adjustment of various collimator modules
+Alignment, assembling adjustment of 1st lens(collimator lens) in butterfly module
+Depending on wavelength a high resolution CCD image sensor or InGaAs high sensitivity image sensor



Please see System components tab below for system details and specifications per component.


1. ISA071  image sensor 400nm - 1100nm wavelength range
    OR
    ISA041H2  image sensor 900nm - 1700nm wavelength range
2. M-Scope type C optics
3. NEUTRAL DENSITY FILTER
4. MANUAL STAGE  (XYZ, XYZ+θxθy, or Z-axis)
5. OPTICAL BEAM ANALYSIS MODULE
