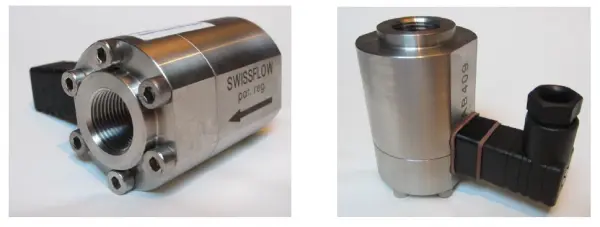

SF-800/6 High Pressure Stainless Steel SwissFlow Flowmeter

Quantity:

The patented SF800 is an all-purpose flow meter with an excellent price-performance ratio. It is suitable for a wide range of applications and large variety of fluids. The heart of the sensor is a turbine with ultra-light (<0.03 gram) VECTRA rotor. The weight of the rotor and the internal geometry of the turbine enable the rotor to float in the medium allowing it to spin near-frictionless. An integrated PCB emits the infrared signal, which is interrupted by the three blades of the rotor. SMD components transform the interrupted signal into a pulse, creating a perfect block-pulse.

Patented technology and well-thought-out design are the basis for quality Swissflow turbine flow meters.

Range:

  • Flow rate: 0.5 - 20 L/minMax.
  • Operating temperature range: -20 to 90o C
  • Viscocity: 1-1000CstMax.
  • Operating pressure: 250 bar
  • Max. pressure: 750 bar

Benefits of SF-800/6 Stainless Steel Flowmeter

  • 12 year warranty (exceptionally long life)
  • Virtually frictionless operation (exceptionally low wear and tear)
  • Compact Highly proportional, linear, and accurate signal High resolution (5500 pulses/L)
  • Versatile design for many applications
  • Various plumbing options
  • Temperature and highly chemically resistant
  • Can be installed in any angle or position Immune to limescale buildup
  • Immune to magnetic fields, unlike common flowmeters

Add the SF-800/6 Stainles Steel flowmeter to your quote request or get in touch with us for more information on which flowmeter Daitron can provide for you!
